Steel Garage Door - 16 ft x 7 ft

Recorded weight: 246 lbs

Photos

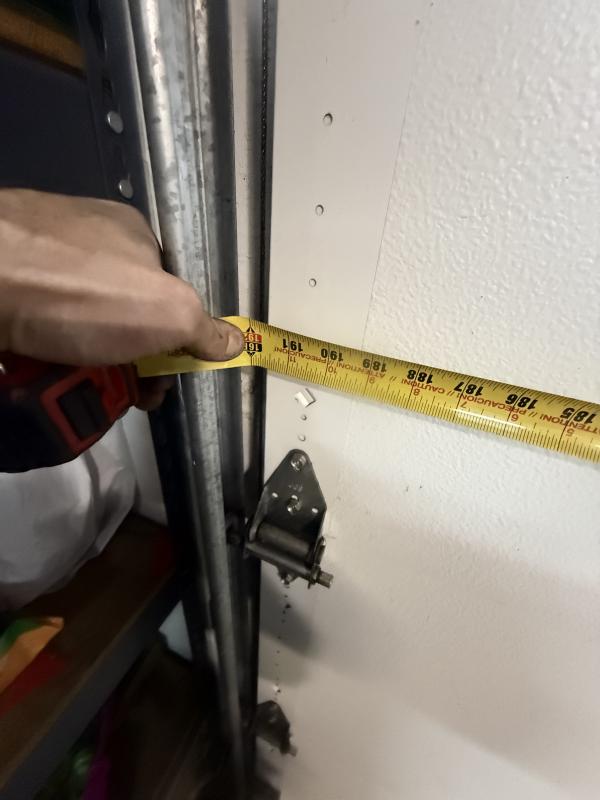

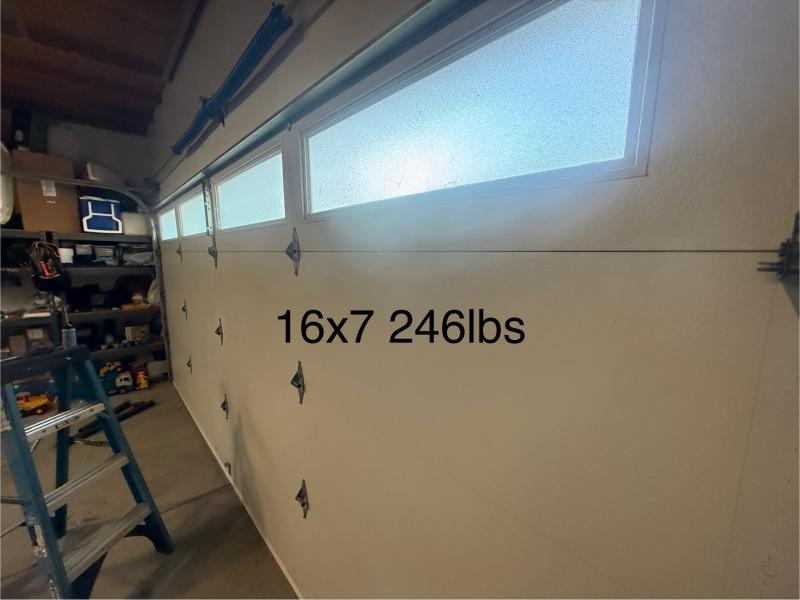

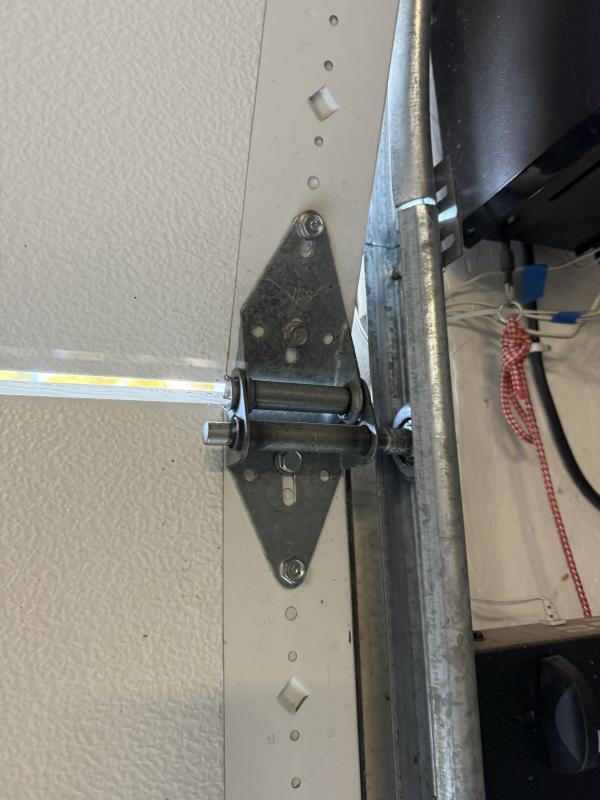

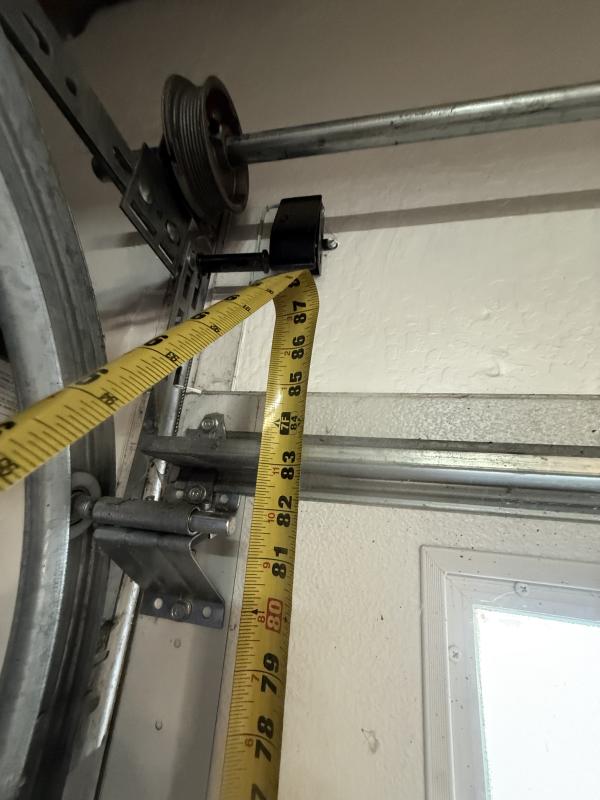

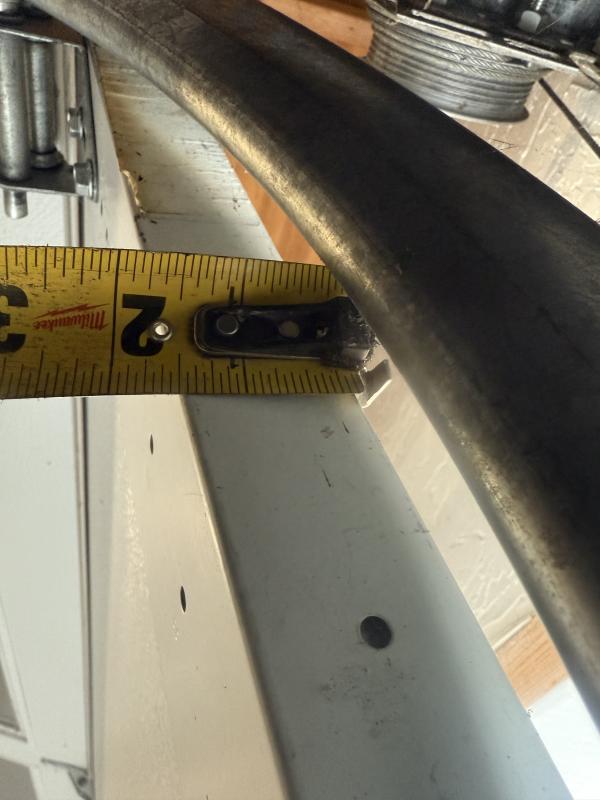

Steel Garage Door - 16 ft x 7 ft, 246 lbs

Photo 1 of 5

Specifications

Manufacturer
Not recorded
Model
Not recorded
Material
Steel
Width
16 ft
Height
7 ft
Thickness
1.500 in
Windows
Yes
Find springs for a 246 lb door

Springs for this door

For this 246 lb, 7 ft high door on 2 torsion springs (unless shown otherwise), standard lift, 15" radius track, 4" drums and a 2" inside diameter.

Standard (10,000+ cycles)
2 x .234 x 2 x 27.5
Brown wire, lifts 246.4 lbs, about 14,000 cycles
Long life (25,000+ cycles)
2 x .250 x 2 x 38
Gold wire, lifts 246.5 lbs, about 34,000 cycles

Each spring needs about 31.00 IPPT at 7.94 turns.

Sizes are wire x inside diameter x length, in inches, from standard torsion spring formulas. Other tracks, drums, a 1 3/4" inside diameter or glass in the top section only change the answer: size springs for this door with your own setup. Estimated only, confirm with your supplier.

Estimate the weight of your door

Is your door a little different? Enter its size and whether it has windows, and we scale this door's 246 lbs (16 ft x 7 ft) to your door.

Width
ft in
Height
ft in
Windows

Estimated weight only, not guaranteed. It assumes your door is built like this one. Doors the same size can weigh quite differently: insulation, steel thickness, windows and overlays all change the weight. The exact weight comes from weighing the door with the spring tension released, which is a job for a trained technician.

Field notes

Weighed this door and got something different? Know the model number? Leave it here so the next person gets a better number than we have.

No field notes on this door yet.

If you have weighed one, you would be the first.
